GRESLEY COACH DYNAMO BRACKET (for Stones Dynamo) LNER GRESLEY (O Gauge 7mm scale)

This is a 3D printed item, using a fine ABS like resin.

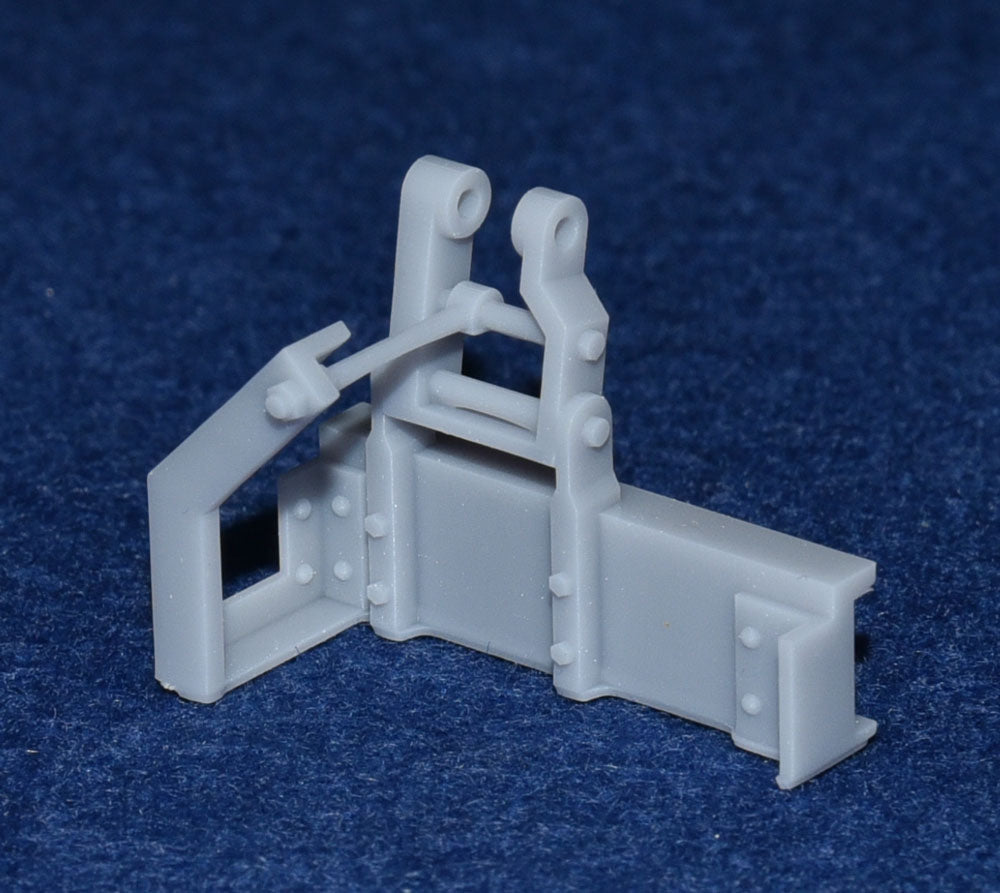

The photo is of an example of the finished item as you will receive it, taken with a full frame 35mm SLR and not a digital representation.

This dynamo bracket is compatible with our Standard and early Heavy Duty Stones dynamos (it is not compatible with the later Heavy Duty dynamo). It is 19mm wide with a 5mm high "U" section frame. It comes complete with the adjuster bracket and rod. The bracket is available in two variants, being:



- Standard orientation (for the standard single dynamo fitting)

- Reverse orientation (for when three dynamos are fitted, e.g. Restaurant cars and Buffet cars)



A Restaurant / Buffet car would typically have 1 or 2 standard orientation brackets (depending on what era is being modelled and whether gas cooking equipment was installed) and in some case an additional reverse orientation bracket for the third dynamo.

These parts were commissioned by me as I was building Buffet and Restaurant versions of the Gresley coaches.
