STEAM TRAM "SADDLE TANK" NARROW GAUGE LOCOMOTIVE [1c] (BODY ONLY) (O9 Gauge 7mm scale)

This is a 3D printed item, using a fine ABS like resin and is a complete body (with separate roof) to create an O scale miniature railway steam tram loco with saddle tank (7mm / foot) running on 9mm track.

This was commissioned by a customer who was looking to expand the range of industrial locos on his O9 gauge layout and was modelled to their requirements rather than being based on a particular prototype.

Photos 1, 2 & 3 are of an example of the item as you will receive it. The next 4 photos are of the body mounted to the chassis (couplings, motorised chassis and track are not included in the sale). A 42mm driver fits well inside the cab.

These are genuine photos taken with a full frame 35mm SLR and not digital representations. You simply need to file / sand the bottom edge of the loco, snip out the base brace and smooth the roof. It is then ready to paint / attach the roof / fit to the chassis (not supplied) and add the couplings (not supplied).

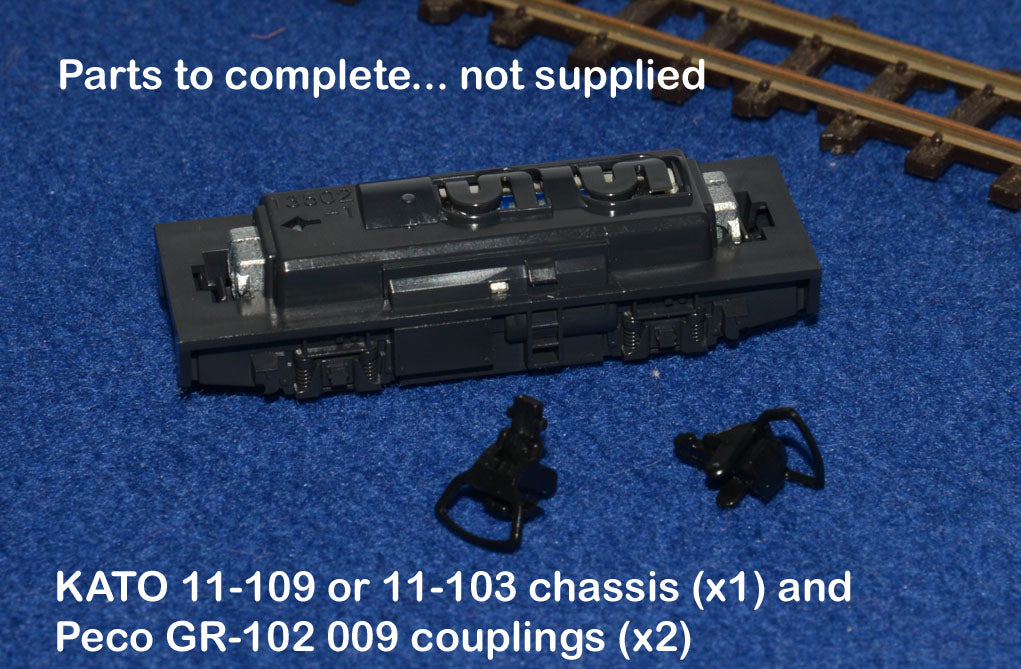

It is designed to run on a KATO 11-103 or KATO 11-109 chassis (available as an option) that simply clips into the body. It also uses two standard Peco GR-102 009 couplings (not supplied) that slot neatly into the bodywork (see photos 8, 9 and 10).

Bear in mind the size of these items when looking at the detail in the photos. The loco body is 62mm long, 27mm wide and 53mm high (55mm high above the top of the rail with a KATO chassis fitted).



Please ask if you have any questions or if you need more than are listed.
